NEW QUESTION # 31

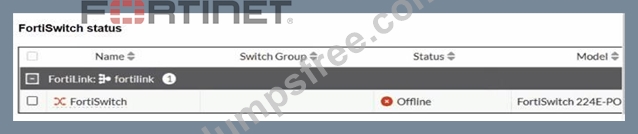

Refer to the exhibits.
You are adding a new FortiSwitch to FortiGate for management. All necessary settings have been configured on FortiGate, but FortiSwitch remains offline. The cabling has been verified and is correctly connected.
Which misconfiguration might be preventing FortiGate from detecting FortiSwitch?
- A. The DHCP server setting vci-string is misconfigured.
- B. The Fortilink interface setting cype must be physical.
- C. The Fortilink interface has the wrong interface member.
- D. The Fortilink interface setting ip-managed-by-fortiipam must be enabled.
Answer: A
Explanation:
On FortiLink, FortiGate's built-in DHCP server is what gives FortiSwitch its IP so it can come under management. For automatic FortiSwitch onboarding, the DHCP server is usually set with:
set vci-match enable
set vci-string "FortiSwitch" "FortiExtender"

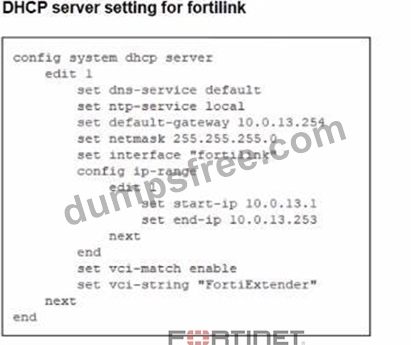

In the exhibit, the DHCP server for fortilink has:
set vci-match enable
set vci-string "FortiExtender"
Because theVCI string doesn't include "FortiSwitch", DHCP offers are only sent to clients whose Vendor Class Identifier matchesFortiExtender. The FortiSwitch never receives an IP, so it staysOffline.

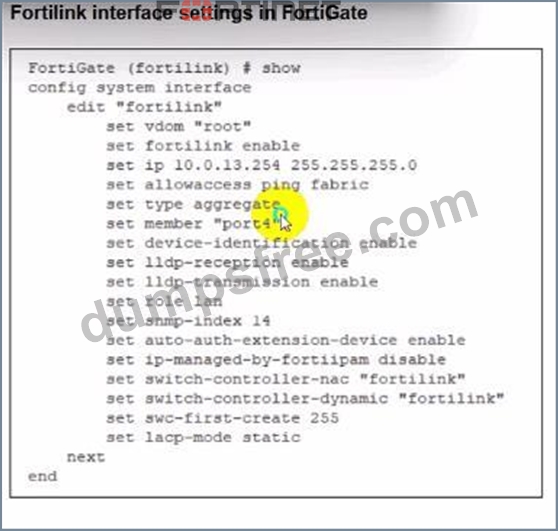

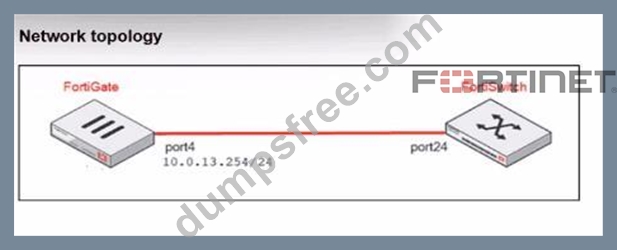

* OptionBis wrong: member "port4" matches the physical cabling in the topology.
* OptionCis fine: FortiLink can be anaggregateinterface, not only physical.
* OptionA(ip-managed-by-fortiipam) is unrelated; FortiIPAM isn't required here.
NEW QUESTION # 32
When the MAC address of a device is placed in quarantine on FortiSwitch, what happens to its egress traffic?
- A. Traffic is sent to an allowed VLAN.
- B. Traffic is assigned to the native VLAN.
- C. Traffic is sent as untagged traffic.
- D. Traffic is sent to an access VLAN.
Answer: D
Explanation:
When a device'sMAC address is quarantinedon a FortiSwitch (via FortiLink NAC, fabric automation, or manual quarantine), FortiSwitch enforces quarantine using thequarantine VLAN, also called theaccess VLANinside FortiSwitch NAC operations.
FortiSwitch behavior is defined in LAN Edge documentation:
* Quarantined devices are moved into an"access VLAN" reserved for isolation.
* This VLAN isstatically defined on the FortiGate NAC policy, and switch ports dynamically reassign the quarantined MAC into that VLAN.
* All egress traffic from the quarantined MAC is forced into this VLAN, preventing access to the production network.
Thus, the correct description is:
#Traffic is sent to an access VLAN.
Options B, C, and D are incorrect because:
* Quarantine doesnotreassign to native VLAN.
* It doesnotsend untagged traffic arbitrarily.
* It doesnotforward traffic to allowed VLANs
NEW QUESTION # 33
You are troubleshooting a Syslog-based single sign-on (SSO) issue on FortiAuthenticator, where user authentication is not being correctly mapped from the syslog messages. You need a tool to diagnose the issue and understand the logs to resolve it quickly.
Which tool in FortiAuthenticator can you use to troubleshoot and diagnose a Syslog SSO issue?
- A. Debug logs > Single Sign-On > Syslog SSO
- B. Parsing Test Tool
- C. Debug logs > Remote Servers > Syslog Viewer
- D. Debug logs > SSO Sessions page
Answer: A
Explanation:
Context: You're troubleshootingSyslog-based SSOonFortiAuthenticator:
* Devices (typically firewalls, WLAN controllers, VPN gateways) sendsyslog messagescontaining usernames, IPs, login/logout events.
* FortiAuthenticator parses those logs usingSyslog SSO rulesand injects logon sessions intoFSSOfor FortiGate.
When users are not mapping correctly, you need to see:
* Did the syslog message arrive?
* Which matching rule (if any) caught it?
* What username and IP were extracted?
* Why was a message ignored or rejected?
FortiAuthenticator has a dedicated debug area for this:
Debug logs # Single Sign-On # Syslog SSO
This view shows:
* Raw syslog lines received
* Thematching ruleapplied (or "no match")
* Parsed fields (username, IP, group)
* Any parsing errors
This is exactly the tool designed totroubleshoot and diagnose Syslog SSO issues.
Why the other options are not the best for this issue
* A. Debug logs > Remote Servers > Syslog Viewer
* Lets you see syslog traffic in general, but doesnotshow how SSO rules are applied or why they fail. Good for connectivity checks, not SSO logic.
* B. Parsing Test Tool
* Useful totestpatterns and rules manually by pasting sample log lines, but it doesn't show live traffic or running SSO sessions.
* C. Debug logs > SSO Sessions page
* Shows existing SSO sessions (who is logged in), but notwhya particular syslog message did not create a session.
NEW QUESTION # 34
Which authentication method is triggered when a device does not support 802.1X but needs to access the network using its MAC address?
Response:
- A. MAC Authentication Bypass (MAB)
- B. LDAP-based login
- C. EAP-TLS
- D. RADIUS EAP chaining
Answer: A
NEW QUESTION # 35
Which CLI command enables FortiLink on port1 of a FortiGate for FortiSwitch management?
Response:
- A. All of the above
- B. config system interface
- C. set fortilink enable
- D. edit port1
Answer: A
NEW QUESTION # 36
When troubleshooting a captive portal issue, which POST parameter in the redirected HTTPS request can be used to track the user's session and ensure that the request is valid?
- A. magic
- B. email
- C. username
- D. redir
Answer: A
Explanation:
In FortiGate captive portal workflows (local or external):
* Client connects to SSID / interface that has captive portal enabled.
* Client makes an HTTP/HTTPS request.
* FortiGate intercepts and redirects to alogin page(local or external URL).
* The portal form is submitted viaPOSTback to FortiGate.
To prevent tampering and to tie the POST back to thecorrect user session, FortiGate includes a special hidden parameter in the redirect and expects it in the POST:
* The parameter is namedmagic.
The magic value:
* Is aunique tokengenerated per captive-portal session.
* Encodes/session-links the user's IP, interface, and session info.
* Allows FortiGate to ensure that:
* The POST comes from the user who initiated the original request.
* The request is not a random or replayed submission.
When troubleshooting:
* If the external portal does notpreserve and resendthe magic parameter back to FortiGate exactly as received, authentication fails, and you'll see errors like "session not found" or "invalid magic".
Why the other fields are not used for this purpose
* A. username- Just the login ID; multiple users can use the same username from different locations, so it can't uniquely track the browser session.
* B. redir- Contains the URL the user originally requested, so they can be sent back there after login. It is not a session integrity token.
* D. email- Optional field used in some guest/registration flows; irrelevant to session validation.
NEW QUESTION # 37
Which of the following are benefits of using FortiAIOps in large campus environments?
(Choose two)
Response:
- A. License pooling
- B. Faster mean time to resolution (MTTR)
- C. Predictive alerting and diagnostics
- D. Increased log retention
Answer: B,C
NEW QUESTION # 38
Which Fortinet technologies can dynamically assign VLANs based on user or device attributes?
(Choose two)
Response:
- A. FortiCloud
- B. FortiAuthenticator
- C. FortiLink NAC
- D. FortiAnalyzer
Answer: B,C
NEW QUESTION # 39
You are setting up a captive portal to provide Wi-Fi access for visitors. To simplify the process, your team wants visitors to authenticate using their existing social media accounts instead of creating new accounts or entering credentials manually.
Which two actions are required to enable this functionality? (Choose two.)
- A. Set up the FortiAuthenticator internal database as the primary source for user credentials
- B. Configure only the email login option because a social media login cannot be used with captive portals.
- C. Configure the social login profiles for the supported platforms.
- D. Enable Account Login as the authentication type and configure a remote LDAP server.
- E. Set up a remote open authorization (OAuth) server for each selected social media platform.
Answer: A,E
NEW QUESTION # 40
In a FortiNAC deployment, what does the term "dissolvable agent" refer to?
Response:
- A. A cloud-based identity system
- B. A configuration template
- C. A temporary agent downloaded for posture checks
- D. An endpoint license
Answer: C
NEW QUESTION # 41
Which monitoring tools in FortiGate help visualize wireless performance metrics?
(Choose three)
Response:
- A. Heatmaps in FortiPlanner
- B. Log & Report > WiFi Events
- C. FortiView
- D. Spectrum Analysis
- E. Threat Map
Answer: B,C,D
NEW QUESTION # 42
Which policy components are essential in a FortiGate NAC policy for wireless networks?
(Choose three)
Response:
- A. Role assignment
- B. Posture check condition
- C. IPsec VPN enforcement
- D. VLAN assignment
- E. Authentication rules
Answer: A,D,E
NEW QUESTION # 43
You are setting up FortiAuthenticator to query users from Active Directory. Which bind method must be used for secure authentication?
Response:
- A. Simple Bind over SSL
- B. Anonymous Bind
- C. Local User Bind
- D. NTLM
Answer: A
NEW QUESTION # 44
Which Fortinet components are typically involved in implementing NAC policies for wired and wireless networks?
(Choose two)
Response:
- A. FortiGate
- B. FortiAuthenticator
- C. FortiManager
- D. FortiAnalyzer
Answer: A,B
NEW QUESTION # 45
What must be done on the FortiGate to fully enable RSSO with FortiAuthenticator?
Response:
- A. Add syslog filter
- B. Disable RSSO attribute
- C. Set RADIUS client IP
- D. Enable RSSO on user group
Answer: D
NEW QUESTION # 46
How does FortiAnalyzer contribute to device quarantine actions in a Fortinet Security Fabric?
Response:
- A. Provides automatic endpoint disconnection
- B. Sends log-based event triggers to FortiGate
- C. Triggers FortiAIOps remediation
- D. Reboots affected FortiSwitch ports
Answer: B
NEW QUESTION # 47
You are configuring FortiAuthenticator to integrate with FSSO for user identification. To enable FortiAuthenticator to extract user information from syslog messages and inject it into FSSO, you have configured syslog matching rules.
What is the role of syslog matching rules in the process of injecting user information into FSSO?
- A. To enforce user authentication policies based on syslog message contents
- B. To define how syslog messages are parsed and extract user information, such as usernames and IP addresses
- C. To filter and block irrelevant syslog messages from being processed by the FortiAuthenticator
- D. To automatically update user group memberships in FSSO based on syslog events
Answer: B
Explanation:
When FortiAuthenticator is used as anFSSO agentbased onsyslog, it must:
* Parse incoming syslog messagesfrom devices (firewalls, WLAN controllers, VPN concentrators, etc.).
* Extract identity fieldssuch as:
* Username
* IP address
* Login/logout event indicators
Syslogmatching ruleson FortiAuthenticator define:
* Which syslog messages are relevant (by facility, message pattern, or regex).
* How to capture specific fields (username, IP, group, event type).
FortiAuthenticator then uses this parsed data toinject logon sessions into FSSO, so FortiGate can apply identity-based policies.
Thus, the role of syslog matching rules is exactly as described inC.
* A: Group mapping is handled separately via directory groups / FSSO config, not directly by matching rules.
* B: Enforcement of authentication policies is done on FortiGate, not directly by the matching rules.
* D: While irrelevant logs can be ignored via rules, the primary purpose isparsing and extraction, not generic filtering.
NEW QUESTION # 48
Refer to the exhibits.
The exhibits show the VAP configuration. Wi-Fi SSIDs. and zone table.
Which two statements describe how FortiGate handles VLAN assignment for wireless clients? (Choose two.)
- A. FortiGate will load balance clients using VLAN 101 and VLAN 102 and assign them an IP address from the 10.0.3.0/24 subnet.
- B. Clients connecting to APs in the Office group will be assigned to VLAN 102.
- C. Clients connecting to APs in the Floor 1 group will not be able to receive an IP address.
- D. All clients connecting to the Corp Zone will receive an IP address from the 10.0.20.0/24 subnet.
Answer: B,C
Explanation:

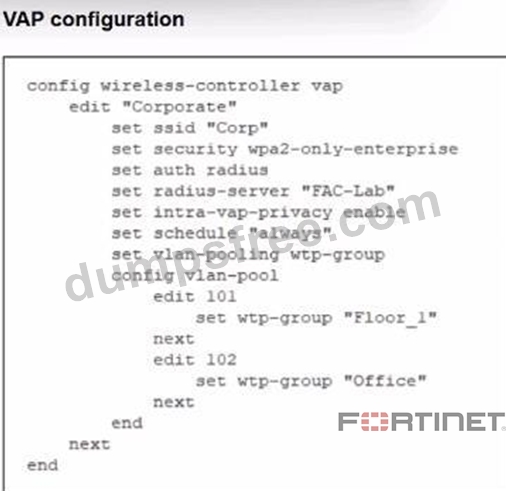

The VAP configuration clearly showsVLAN pooling using WTP-groups:
set vlan-pooling wtp-group
config vlan-pool
edit 101
set wtp-group "Floor_1"
edit 102
set wtp-group "Office"
How VLAN assignment works in this mode
VLAN-pooling with wtp-group modemeans:
* Each AP group (WTP group) is tied to exactly one VLAN in the pool.
* The FortiGate doesnot load balanceVLANs.
* Instead, VLANs are mappedper AP group, not per client.
Now verify each answer option:
A). FortiGate will load balance clients using VLAN 101 and 102...
#Incorrect.
FortiGatedoes NOT load-balance clientswhen vlan-pooling is set towtp-group.
Each AP group receivesonly the VLAN mapped to it.
B). All clients in the Corp zone get IPs from 10.0.20.0/24
#Incorrect.

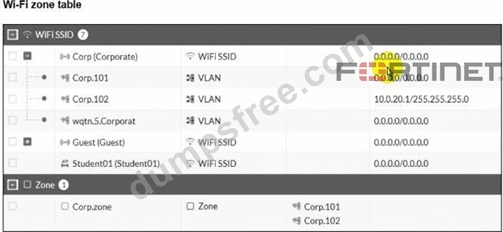

In the Wi-Fi zone table, onlyCorp.102has an IP subnet:
* Corp.101 #0.0.0.0/0.0.0.0(no IP assigned # clients get no DHCP)
* Corp.102 #10.0.20.1/255.255.255.0
Thus, clients associated to VLAN 101cannotget IPs.
C). Clients connecting to APs in the Floor_1 group cannot receive an IP address
#Correct.
Reason:
* Floor_1 WTP-group # VLAN101
* VLAN 101 hasno IPin the Wi-Fi table #0.0.0.0/0.0.0.0
* No DHCP =Clients receive no IP address
D). Clients connecting to APs in the Office group will be assigned to VLAN 102
#Correct.
Reason:
* Office WTP-group maps to VLAN102
* VLAN 102 has subnet10.0.20.0/24
* So Office group clients get an IP in that range
NEW QUESTION # 49

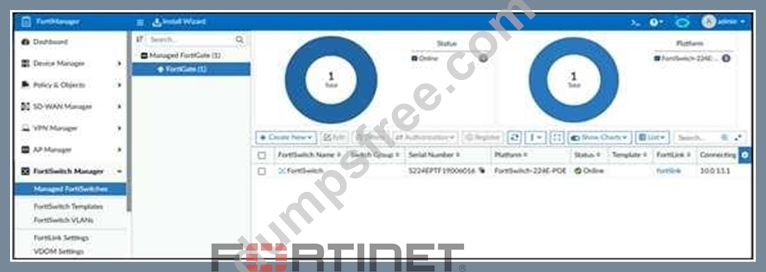

Refer to the exhibit.
The FortiManager device is set to central management mode for FortiSwitch devices. How are configuration changes applied to multiple FortiSwitch devices? Response:
- A. Configuration changes require manually updating each device.
- B. Configuration changes are made on individual switches.
- C. Changes are applied only to switches that share the same model number.
- D. Changes are made through a template.
Answer: B
NEW QUESTION # 50
......
Fortinet FCSS_LED_AR-7.6 Exam Syllabus Topics:
| Topic | Details |
|---|---|
| Topic 1 |
|
| Topic 2 |
|
| Topic 3 |
|
| Topic 4 |
|
Last FCSS_LED_AR-7.6 practice test reviews: Practice Test Fortinet dumps: https://dumpstorrent.dumpsfree.com/FCSS_LED_AR-7.6-valid-exam.html
